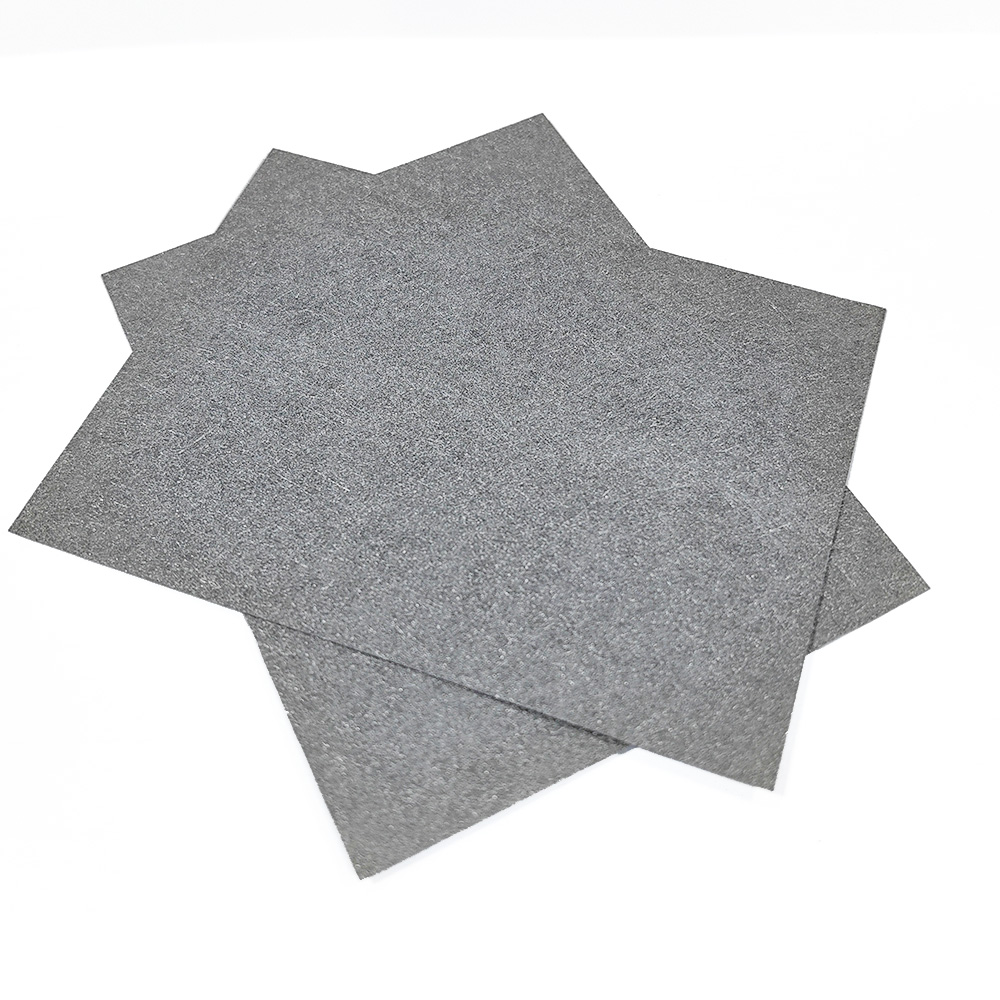

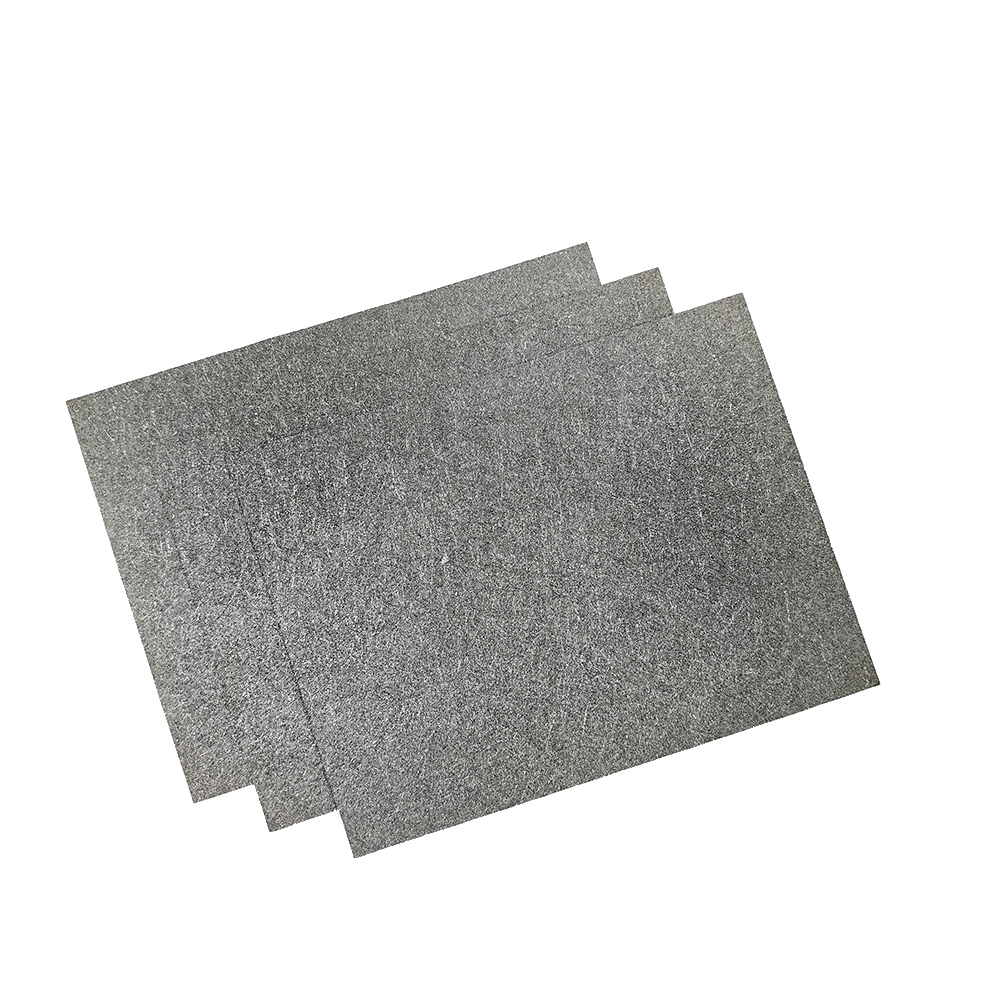

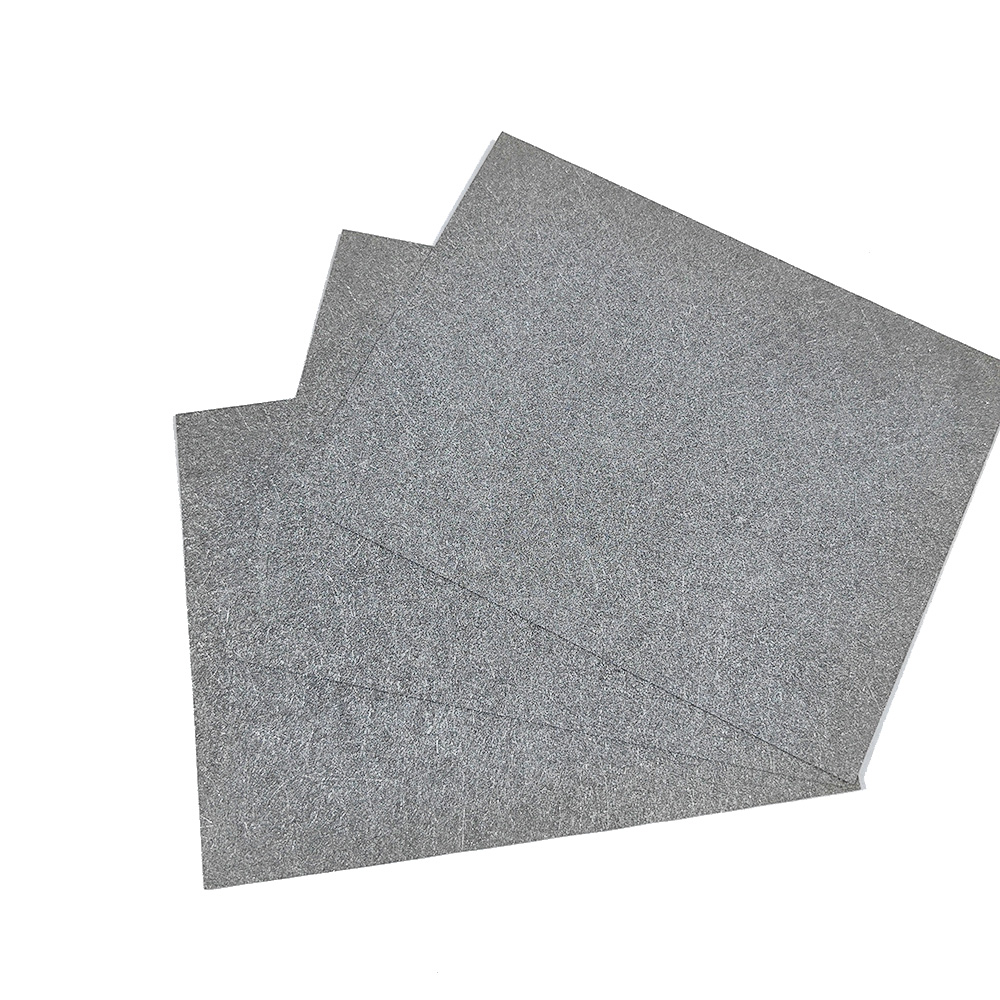

Titanium Fiber Felt
Titanium Fiber Felt
Titanium fiber mat series is a kind of titanium fiber sintered mat with high porosity and three-dimensional structure. The process of titanium wire through a special process made of micron-sized fibers, titanium fibers after laying, sintering, made of porous materials, its unique three-dimensional network of fibers and full connectivity pore structure makes it have a series of special features.
Product Description
Titanium fiber mat series is a kind of titanium fiber sintered mat with high porosity and three-dimensional structure. The process of titanium wire through a special process made of micron-sized fibers, titanium fibers after laying, sintering, made of porous materials, its unique three-dimensional network of fibers and full connectivity pore structure makes it have a series of special features.
Its unique three-dimensional network of fibers and fully connected pore structure gives it a series of special functions. In the application of hydrogen production in PEM electrolyzer, under the condition of atmospheric pressure and 60℃, titanium mats have the best electrolysis performance, the most suitable pore size, the best air permeability and porosity. Test data show that compared to carbon paper and powdered titanium sheets, titanium felts have the lowest ohmic resistance and the lowest overpotential.
Compared with carbon paper and powdered titanium plate, titanium felt has the smallest resistance and the smallest overpotential, which reduces energy consumption and improves electrolysis performance, and the voltage is lower than that of carbon paper and powdered titanium plate, which indicates that titanium felt has better electrolysis performance, and titanium felt has a very high porosity and a large pore size, which is favorable for the emission of gases and the circulation of liquids.
Product Characteristics
Smooth surface, good uniformity, high aeration, strong bonding, stable electrolytic performance, small resistance, low energy consumption, hole into three-dimensional structure.
Chemical Composition
| Ti | Fe | Al | Ni | Cu | Co | O | C | N | H | Other unspecified elements |
| ≥99.5 | ≤0.05 | ≤0.08 | ≤0.01 | ≤0.005 | ≤0.005 | ≤0.08 | ≤0.08 | ≤0.08 | ≤0.08 | ≤0.1% |
Specification
| Thickness | Tolerance | Surface Density | Porosity | Tolerance | Breathability | Tolerance | Roughness |
| 0.10mm | ±0.03mm | 175~220g/m2 | 56% | ±5 | 1600L(Min*d m2) | ±30% | ≤5Ra/μm |
| 0.20mm | 350~440g/m2 | 700L(Min*d m2) | |||||
| 0.25mm | 440~550g/m2 | 500L(Min*d m2) | |||||
| 0.30mm | 525~660g/m2 | ≥450L(Min*d m2) | ±20% | ||||
| 0.40mm | 615~795g/m2 | 61% | |||||
| 0.50mm | 680~900g/m2 | 65% | |||||
| 0.60mm | 755~1030g/m2 | 67% | |||||
| 0.80mm | 940~1300g/m2 | 69% | |||||
| 1.00mm | 1130~1580g/m2 | 70% | ≥400L(Min*d m2) | ||||
| 1.20mm | ±0.05mm | 1190~1735g/m2 | 73% | ≥400L(Min*d m2) | |||
| 1.50mm | 1355~2030g/m2 | 75% | ≥400L(Min*d m2) |
Workshop Display
Application
Packing Details
FAQ
1.MOQ: 100m²
2.Delivery time: around 20days after confirm order.
3.For LCL goods, the payment terms is 100% T/T payment in advance.
4.For full container, the payment terms is 50% deposit in advance, 50% balance before the shipment date.
